Windshield Wiper Motor -V-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the windshield wiper arms. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
-- Remove the plenum chamber cover. Refer to .

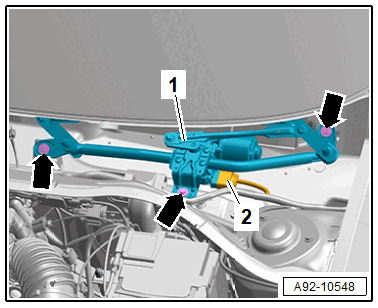

-- Remove the bolts -arrows-.
-- Remove the windshield wiper frame together with the linkage and the windshield wiper motor -1- from the plenum chamber.
-- Disconnect the connector -2-.
