Windshield Wiper Arms, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

If the windshield wiper motor is to be run during the work procedure, the front lid must be closed. Otherwise, the power supply to the wiper motor will be interrupted.

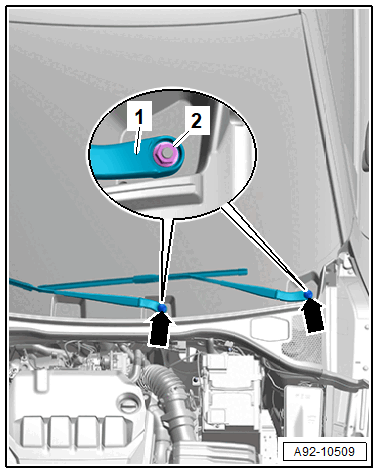

-- Pry the caps -arrows- off of the windshield wiper arms -1- with a screwdriver.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nuts -2- several turns.

-- Attach the Puller - Wiper Arm Kit - Puller 1:T10369/1 to the wiper arm -1-, as shown.

Fig 1: Identifying Windshield Wiper Arm And Puller T10369/1

Courtesy of AUDI OF AMERICA, LLC

-- Position the thrust piece -2- on the windshield wiper axle.

-- Turn the bolt -3- clockwise until the windshield wiper arm is removed from the windshield wiper axle.

-- Remove the nuts completely and remove the windshield wiper arms.
