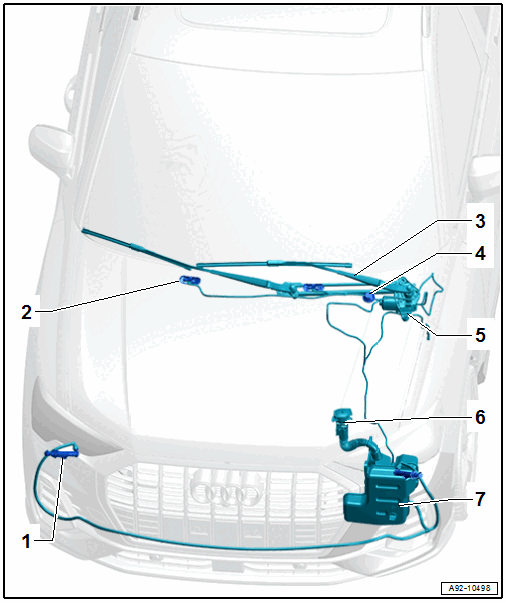

Component Location Overview - Windshield Wiper System, A3/S3
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamp Washer System Washer Nozzle
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
- Washer Nozzle, Windshield Washer System
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Windshield Wiper Arm
- RHD: is a mirror image
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Grommet
- For the windshield washer fluid hose inside the hood
- Windshield Wiper Motor -V-
- RHD: is a mirror image
- With the Wiper Motor Control Module -J400-
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Filler Neck
- Unit with OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Washer Fluid Reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
