Windshield Washer Pump, Removing And Installing, RS3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Place a drip tray under the washer fluid reservoir.

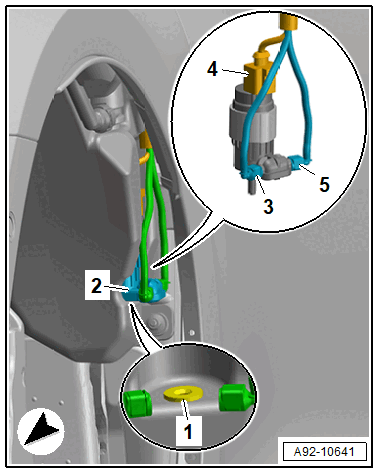

-- Remove the windshield washer pump -2- upward from the washer fluid reservoir.
-- Disconnect the connector -4-.
-- Release the locking clamps -3 and 5- and remove the washer fluid hose from the windshield washer pump.
