Windshield Washer Pump, Removing And Installing, A3/S3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

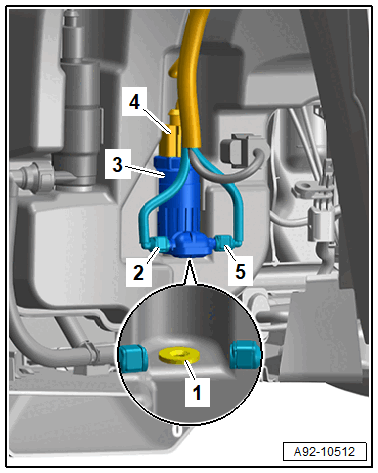

-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Disconnect the connector -4-.
-- Place a drip tray under the washer fluid reservoir.
-- Release the locking clamps -2 and 5- and remove the washer fluid hose from the windshield washer pump -3-.
-- Remove the windshield washer pump upward from the washer fluid reservoir.
