Washer Fluid Reservoir, Removing And Installing, RS3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING, RS3 .
-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Place the drip tray underneath.
-- Press the release buttons -1-, remove the washer fluid hose -2- and free up -arrow-.
-- Remove the nuts -arrows-.
-- Remove the washer fluid reservoir -1- from the threaded pins and remove far enough so the washer fluid hoses and the connectors are accessible.

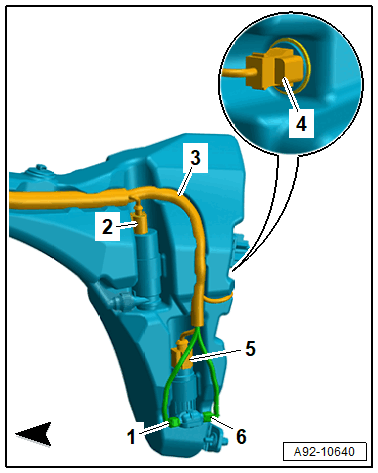

-- Open the clips and remove the washer fluid hose -1 and 6- from the windshield washer pump.
-- Disconnect the connectors -2, 4 and 5-.
-- Free up the wire package -3- at the washer fluid reservoir.
