Washer Fluid Reservoir Filler Neck, Removing And Installing, RS3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- If there is washer fluid in the filler neck, drain it by removing the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Place a drip tray under the washer fluid reservoir.
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

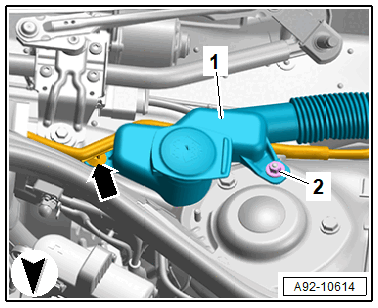

-- Free up the wiring harness -arrow-.
-- Remove the nuts -2- and remove the filler neck -1- with the filler tube from the windshield washer fluid reservoir to the right side through the opening in the body.
