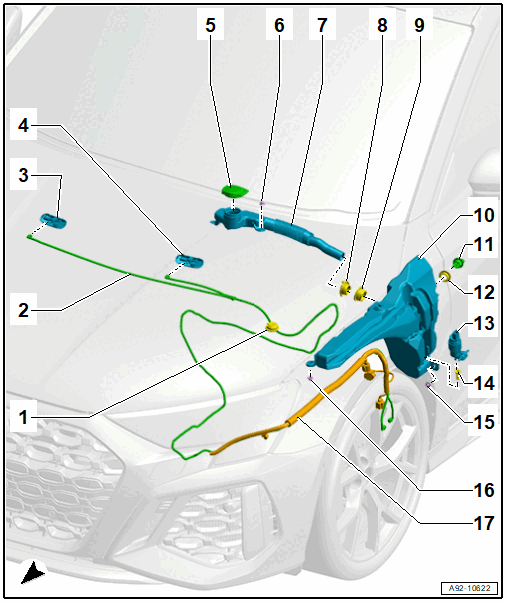

Overview - Windshield Washer System, RS3
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- For the windshield washer fluid hose inside the hood
- Washer Fluid Hose
- To the washer nozzles
- Right Washer Nozzle
- Versions with Right Washer Nozzle Heater -Z21-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting: WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY
- Left Washer Nozzle
- Versions with Left Washer Nozzle Heater -Z20-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting: WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY
- Cap
- For the filler neck
- Nut
- Self-locking
- Replace after removing
- 8 Nm
- Filler Neck with Filler Tube
- For the washer fluid reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR FILLER NECK, REMOVING AND INSTALLING, RS3 .
- Grommet
- Replace if damaged
- Grommet
- Replace if damaged
- Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, RS3 .
- Windshield Washer Fluid Level Sensor -G33-
- Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Windshield and Rear Window Washer Pump -V59-
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING, RS3 .
- Grommet
- Replace if damaged
- Nut
- Self-locking
- Replace after removing
- 8 Nm
- Nut
- Self-locking
- Replace after removing
- 8 Nm
- Wire Package
- With wiring harness and washer fluid hoses for front and rear window washer system
