Rear Window Wiper Motor -V12-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the wiper arm. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

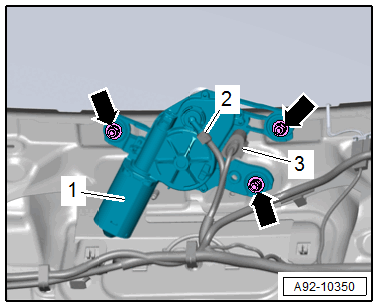

-- Disconnect the connector -3-.
-- Pull the clip and remove the washer fluid hose -2- from the spray nozzle connecting tube.
-- Remove the nuts -arrows- and remove the Rear Window Wiper Motor -V12- -item 1-.
-- If necessary, carefully pry the grommet out of the rear window.
