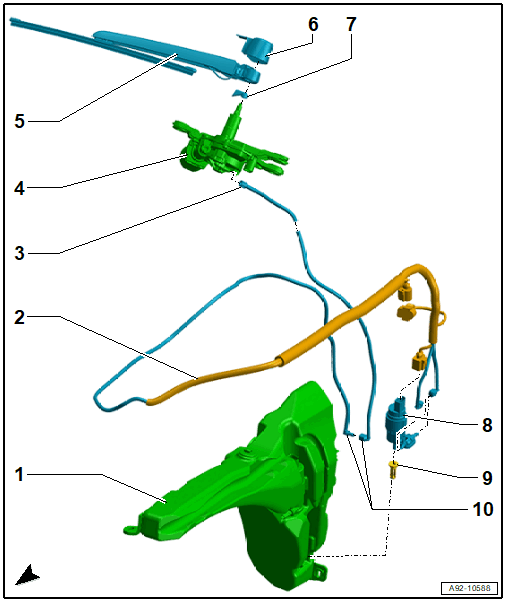

Overview - Rear Window Washer System, RS3
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, RS3 .
- Wire Package
- With wiring harness and washer fluid hoses for front and rear window washer system
- Washer Fluid Hose Connection
- On the rear window wiper motor
- Rear Window Wiper Motor -V12-
- Windshield Wiper Arm
- Cap
- Washer Nozzle
- Removing and Installing. Refer to WASHER NOZZLE, REMOVING AND INSTALLING .
- Adjusting: WINDSHIELD WASHER SYSTEM, CHECK SPRAY PATTERN AND ADJUSTING IF NECESSARY .
- Windshield and Rear Window Washer Pump -V59-
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Washer Fluid Hose Coupling Point
- In the area of the left A-pillar
