Spray Nozzles, Removing And Installing, RS3: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cover for the headlamp washer system spray nozzle. Refer to OVERVIEW - BUMPER COVER .

-- Remove the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

Left Side of Vehicle:

Courtesy of AUDI OF AMERICA, LLC

-- Carefully unclip the air routing -4- from the radiator and leave in installation position.

-- Free up the coolant hoses at the hose bracket -3-.

-- Remove the nuts -arrows- and auxiliary radiator -1- with bracket and move to the side.

Right Side of Vehicle:

Courtesy of AUDI OF AMERICA, LLC

-- Carefully unclip the air routing from the radiator and leave in installation position.

-- Remove the nuts -arrows- and auxiliary radiator -2- with bracket -1- and move to the side.

Continuation for Both Sides:

Courtesy of AUDI OF AMERICA, LLC

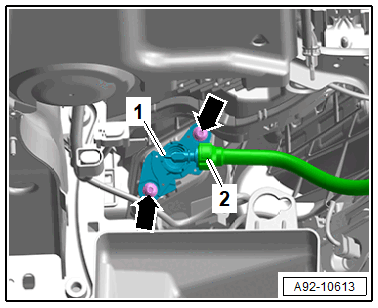

-- Press the release buttons on both sides and remove the washer fluid hose -2-.

-- Remove the bolts -arrows- and remove the washer nozzle -1-.
