Spray Nozzles, Removing And Installing, A3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the cover for the headlamp washer system spray nozzle. Refer to OVERVIEW - BUMPER COVER .
-- On the left side: remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
-- Right side: Remove the wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

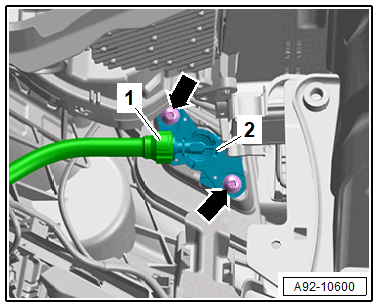

-- Press the release buttons on both sides and remove the washer fluid hose -1-.
-- Remove the bolts -arrows- and remove the washer nozzle -2-.
