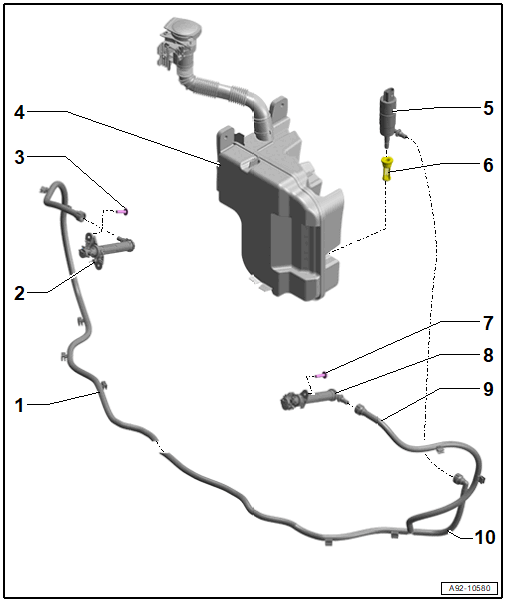

Overview - Headlamp Washer System, A3/S3
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Hose
- For the right washer nozzle
- Right Washer Nozzle
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2 Nm
- Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Headlamp Washer System Pump -V11-
- Removing and Installing. Refer to Headlamp Washer System Pump -V11-, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged
- Bolt
- Quantity: 2
- 2 Nm
- Left Washer Nozzle
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Washer Fluid Hose
- For the left washer nozzle
- Washer Fluid Hose
- From the headlamp washer system pump
