Headlamp Washer System Pump -V11-, REMOVING AND INSTALLING, RS3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

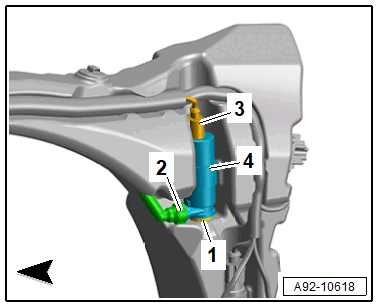

-- Remove the washer fluid reservoir until the windshield washer pump is accessible. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, RS3 .
-- Free up the washer fluid hose -2-, press the release buttons on both sides and remove the washer fluid hose.
-- Remove the headlamp washer system pump -3- from the washer fluid reservoir.
-- Disconnect the connector -3-.
