Headlamp Washer System Pump -V11-, REMOVING AND INSTALLING, A3/S3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

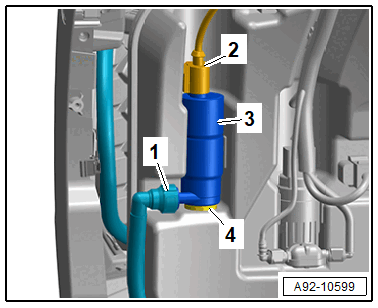

-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Disconnect the connector -2-.
-- Place a drip tray under the washer fluid reservoir.
-- Press the release buttons on both sides and remove the washer fluid hose -1- from the Headlamp Washer System Pump -V11- -item 3-.
-- Remove the headlamp washer system pump upward and out of the washer fluid reservoir.
