Instrument Cluster -KX2-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.
-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.
-- Remove the instrument cluster trim. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
-- Release the clamp -2- -arrow A- and pivot the instrument cluster -1- to the back -arrow B-.
-- Pull the instrument cluster out just far enough until it is touching the steering wheel.

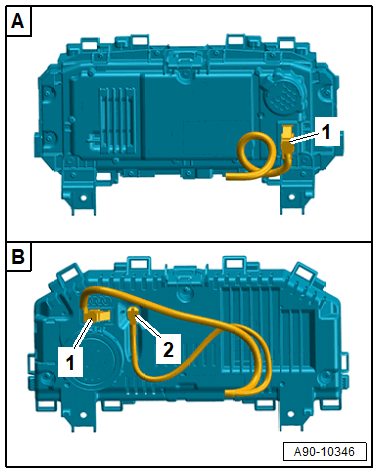

-- Disconnect the connectors:
A - instrument cluster (7J2, 9S1)
- For the instrument cluster
B - instrument cluster (9S9)
- For the instrument cluster
- for the antenna
-- Remove the instrument cluster between the steering wheel and the instrument panel.
