Overview - Front Brake Caliper, Dual-Piston Brake

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

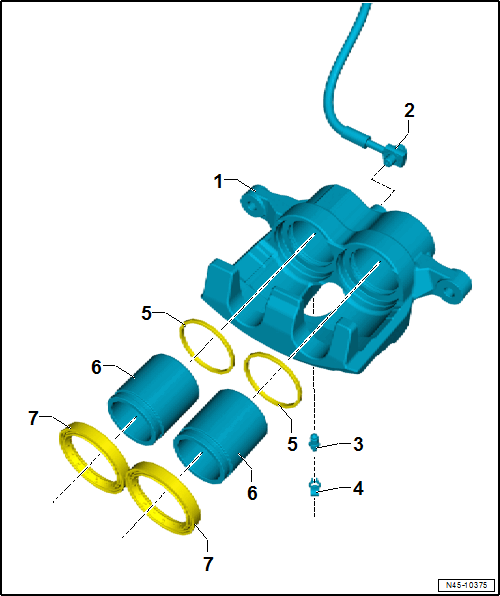

Fig 1: Exploded View Of Front Brake Caliper, Dual-Piston Brake

Courtesy of AUDI OF AMERICA, LLC

Brake Caliper
Brake Hose
Bleed Screw
Protective Cap
- Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, DUAL-PISTON BRAKE
Seal
- Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, DUAL-PISTON BRAKE
Brake Caliper Piston
- Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, DUAL-PISTON BRAKE
Protective Cap
- If damaged, install the entire seal set
- Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, DUAL-PISTON BRAKE
- Mount the cap sealing lip on the brake caliper piston.
