Brake Caliper Piston, Removing And Installing, Dual-Piston Brake: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

The brake caliper is removed. Refer to BRAKE CALIPER, REPLACING, SINGLE AND DUAL-PISTON BRAKES .

-- Tension the brake caliper in a vise with protective covers over the jaws.

TIP:

Make sure that the paint coat on the brake caliper is not damaged when removing the brake caliper pistons and the protective caps.

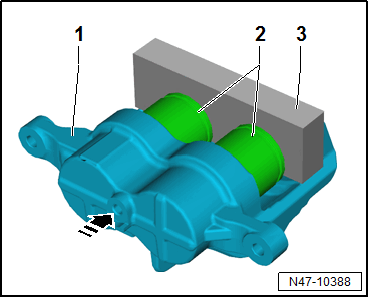

-- Place a wooden board -3- into the recess so the brake caliper piston -2- is not damaged.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Leaking brake fluid increases the risk of injury.

Irritation and injury to the skin and eyes are possible.

- Wear protective eyewear.

- Wear safety gloves.

-- Place a cloth tightly around the compressed air gun nozzle on the brake caliper to catch any spraying brake fluid.

-- Position the compressed air gun nozzle on the hole -arrow- for the brake hose and press the brake caliper piston out of the brake caliper -1-.

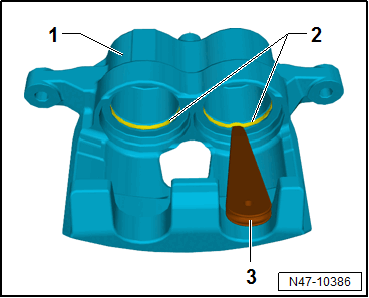

-- Remove the seals -2- from the brake caliper -1- using the Trim Removal Wedge:3409 -item. 3-.

Courtesy of AUDI OF AMERICA, LLC

When removing, make sure that the cylinder surface is not damaged.
