Brake Caliper Piston, Removing And Installing, Dual-Piston Brake: Installing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Install the entire repair kit.
Only use mineral spirits to clean the brakes.
When a brake caliper piston or a piston cylinder are damaged, the brake caliper must be replaced.

-- Insert the seal into the brake caliper.

-- Place the protective cap -2- with outer sealing lip on the brake caliper piston -1-.

Courtesy of AUDI OF AMERICA, LLC

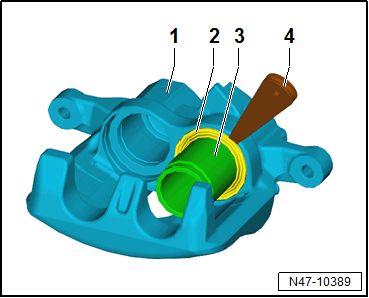

-- Insert the inner sealing lip -2- in the cylinder groove using the Trim Removal Wedge:3409 -item 4- at the same time hold the piston -3- in front of the brake caliper -1-.

Courtesy of AUDI OF AMERICA, LLC

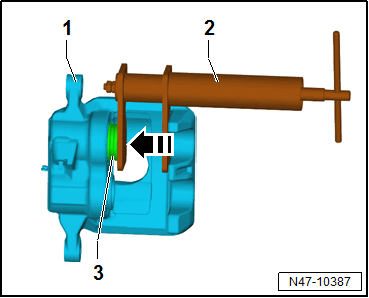

-- Press the brake caliper piston -3- with the Piston Resetting Tool:T10145 -item 2- in the brake calipers -1-, at the same time do not tilt.

Courtesy of AUDI OF AMERICA, LLC

Outer sealing lip of protective cap will then engage in the brake caliper piston groove.

Pre-bleeding

Courtesy of AUDI OF AMERICA, LLC

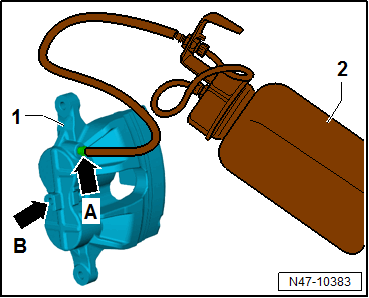

-- Tension the brake calipers -1- using the bleed screw -arrow A- upward in a vise with protective covers over the jaws.

-- Place the container for catching brake fluid underneath.

-- Open the bleed screw and fill with brake fluid, until it leaks out of the connection -arrow B- without bubbles using the collector bottle -2-.

-- Close the bleeder screw.
