Brake Booster, Removing And Installing, LHD Vehicles: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- If replacing the brake booster, select the "Control Module, Replacing" program. Refer to DIAGNOSTIC ENTRIES .
-- Follow the instructions in the Vehicle Diagnostic Tester display.
-- Remove the main brake cylinder. Refer to BRAKE MASTER CYLINDER, REMOVING AND INSTALLING .
Vehicles with high-voltage system:
-- Remove the bracket for the Electric Drive Power and Control Electronics -JX1-. Refer to the appropriate Service Information. .
Continuation for All Vehicles:

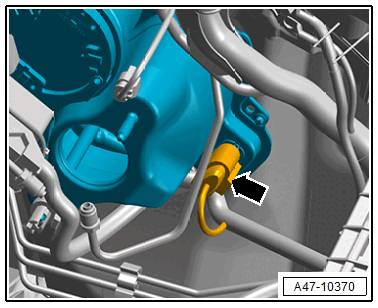

-- Disconnect the connector -arrow-.
-- Disconnect the brake pedal from the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .
-- Remove the nuts -3 and 4- for the brake booster.
-- Pull the brake booster off the bonding on the bulkhead and remove it.
