Lower Tail Lamp, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch off.

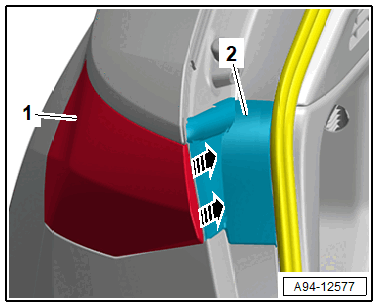

-- To release the catches on the cover -2-, push the cover by hand on the edge forward -arrows-.
 Courtesy of AUDI OF AMERICA, LLC
|

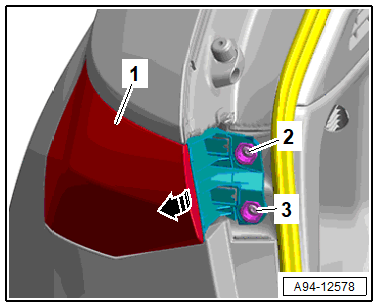

-- Remove the cover from the tail lamp -1-.
-- Remove the bolts -2 and 3-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the tail lamp -1- from the clip nut -arrow-.
-- Disconnect the connector.
