Overview - High-Mounted Brake Lamp

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

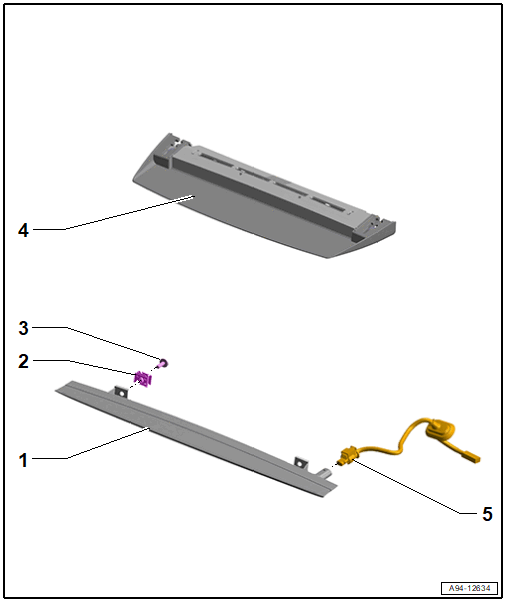

Fig 1: Exploded View Of High-Mounted Brake Lamp
GWWA94-12634Courtesy of AUDI OF AMERICA, LLC
  1. High-Mounted Brake Lamp, Sportback
  2. Spring Nut
  3. Bolt
    • 2.5 Nm
  4. High-Mounted Brake Lamp, Sedan
  5. Connector
