Right LED Headlamp Power Output Module 1 -A27- / Left LED Headlamp Power Output Module 1 -A31-, REMOVING AND INSTALLING, 8IT, 8IY, 8JT, RS3: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

Left Side of Vehicle:

Courtesy of AUDI OF AMERICA, LLC

-- Carefully unclip the air routing -4- from the radiator and leave in installation position.

-- Free up the coolant hoses at the hose bracket -3-.

-- Remove the nuts -arrows- and auxiliary radiator -1- with bracket and move to the side.

Right Side of Vehicle:

Courtesy of AUDI OF AMERICA, LLC

-- Carefully unclip the air routing from the radiator and leave in installation position.

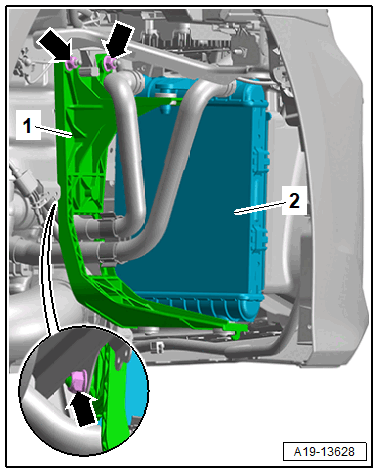

-- Remove the nuts -arrows- and auxiliary radiator -2- with bracket -1- and move to the side.

Continuation for all:

-- Push the air routing so far down, until the power output module is accessible.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the power output module -5-.

-- Disconnect the connector -4- by pressing the locking mechanism -3-, tilting the retaining bracket -2- upward, and removing the connector.
