Right LED Headlamp Power Output Module 1 -A27- / Left LED Headlamp Power Output Module 1 -A31-, REMOVING AND INSTALLING, 8IT, 8IY, 8JT, A3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- On the left side: remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

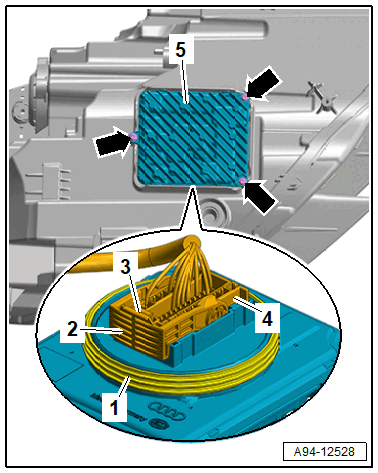

-- Remove the bolts -arrows-.
-- Remove the power output module -5-.
-- Disconnect the connector -4- by pressing the locking mechanism -3-, tilting the retaining bracket -2- upward, and removing the connector.
