Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.

-- Turn the light switch off.

-- Do not operate the flashers.

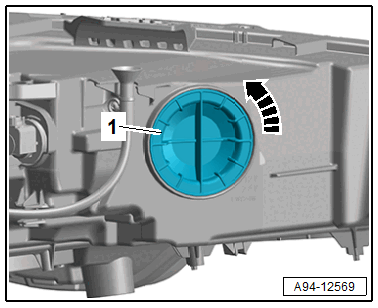

-- Turn the housing cover -1- counter-clockwise -arrow- and remove it from the headlamp housing.

GWWA94-12569Courtesy of AUDI OF AMERICA, LLC

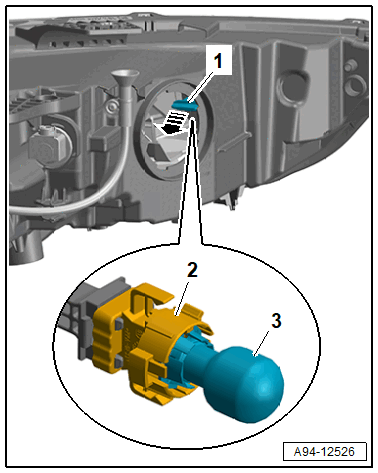

-- Remove the bulb socket -1- from the housing -arrow-.

GWWA94-12526Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -3- from the bulb socket -2-.
