Sealing Frame, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING .

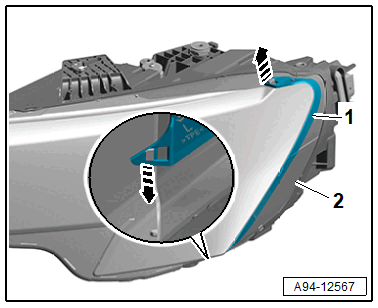

-- Detach -arrows- and then remove the sealing frame -1- at the upper and lower side of the headlamp housing -2-.
