Headlamp Mount, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

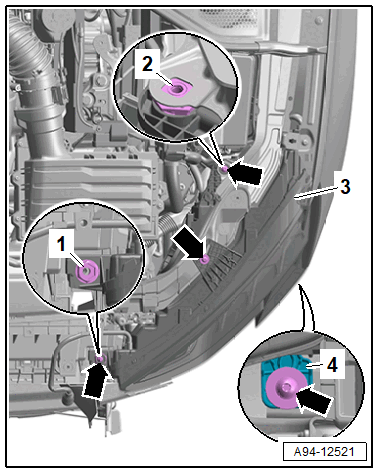

-- Insert the headlamp mount -4- and install the bolt hand-tight.
-- Install the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Align the headlamp -3- to the body contour gap dimensions.
- Gap dimension = even gap
-- Turn the nut -1- and the adjusting mechanism -2- to adjust the height if necessary.
-- Tighten the bolts -arrows-, while doing so, align the headlamp flush to the outer edge of the fender.
-- Check the gap dimensions again and repeat the adjustment as first described, if needed.
-- Adjust the headlamp. Refer to HEADLAMP, ADJUSTING .
