Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front storage compartment in the center console. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

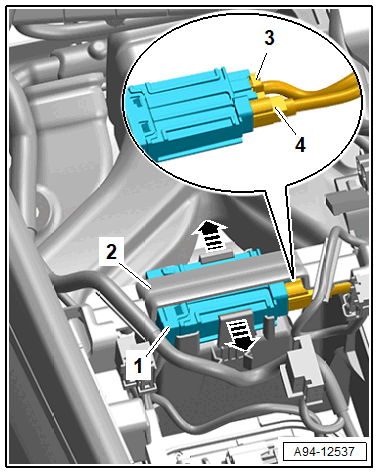

-- Release the retainers -arrows-, then lift the near field communication control module 2 -1- and remove it backward at an angle out of the mount -2-.
-- Disconnect the connector -3- and the antenna wire -4-.
