Alcohol Interlock System - Wires, Routing And Connecting

• Route the wires so they cannot get clamped or worn out.

Installing

Prepare the vehicle interior for installation

-- Switch off the ignition.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Free up the Light Switch -E1-. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Loosen the center console and pull back slightly. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

LHD vehicle

-- Remove the A-pillar right lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the B-pillar right lower trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

Continuation for all vehicles

RHD vehicles

-- Remove the A-pillar left lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

Continuation for all vehicles

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

Route and connect the LIN bus wire

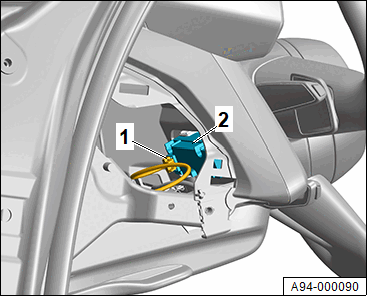

-- Remove the flat connector -1- at the Light Switch -E1- -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Unpin the LIN bus wire green/white to PIN A1 from the flat connector housing -1-.

-- Pin the purple/black wire -1- from the retrofit wiring set to PIN A1 at the flat connector housing to the Light Switch -E1-.

Courtesy of AUDI OF AMERICA, LLC

-- Pin the previously unpinned LIN bus wire green/white -4- and the LIN bus wire purple/black -5- from the retrofit wiring set in the flat connector -3-.

-- Connect the socket -2- and the flat connector -3-, pull over the protective pipe.

-- Wrap the wiring harness to the flat connector -1- at the Light Switch -E1- -2- using cloth tape.

Courtesy of AUDI OF AMERICA, LLC

-- Connect the flat connector at the Light Switch -E1- again.

LHD vehicle

-- Route the prepared LIN bus wire purple/black -1- from the Y-adapter along the instrument panel crossmember up to the rear of the glove compartment.

Courtesy of AUDI OF AMERICA, LLC

Continuation for all vehicles

RHD vehicles

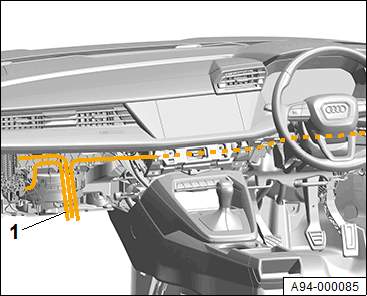

-- Route the LIN bus wire purple/black from the Y-adapter up to the rear of the glove compartment -1-.

Courtesy of AUDI OF AMERICA, LLC

Continuation for all vehicles

Route the positive cable terminal 30 and connect

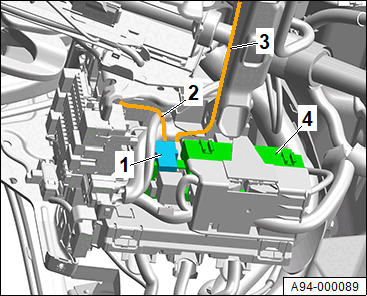

-- Insert the fuse panel single fuse -1- into the fuse panel -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Do not yet connect the fuse 10 A.

-- Slightly lift and turn the Fuse Panel C -SC- -2- with the wires still connected. Refer to FUSE PANEL C -SC- UNDER LEFT INSTRUMENT PANEL, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

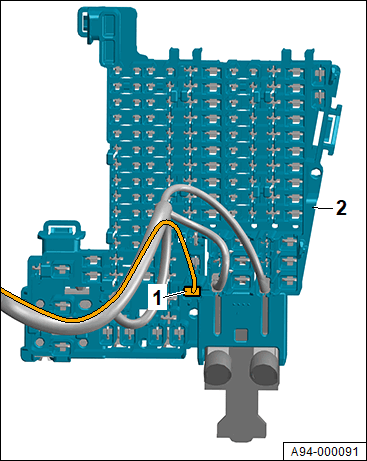

-- Route the red positive cable from the retrofit wiring set from the fuse panel single fuse to the location E1 -1- in the fuse panel C -2- and connect.

LHD vehicle

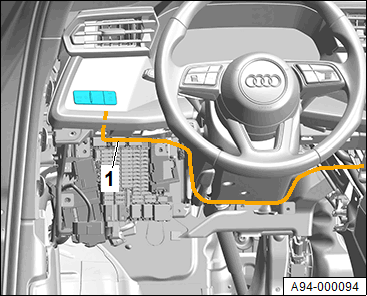

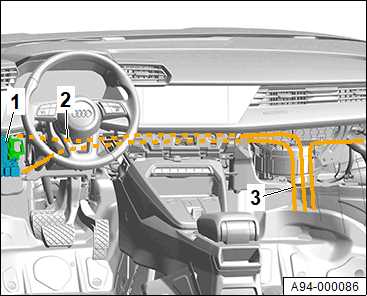

-- Route the positive cable 30 red -3- from the fuse panel C -1- along the instrument panel crossmember up to the rear of the glove compartment. Secure the positive cable every 20 cm together with the LIN bus wire purple/black -2- using cable ties.

Courtesy of AUDI OF AMERICA, LLC

Continuation for all vehicles

RHD vehicles

-- Route the positive cable terminal 30 red -2- up to the rear of the glove compartment and secure with cable ties.

Courtesy of AUDI OF AMERICA, LLC

Continuation for all vehicles

Route the ground wire terminal 31 and connect

LHD vehicle

-- Lift off the carpet at the side sill, free up the ground connection -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ground connection nut. Refer to Wiring Diagrams, Component Locations: Ground Connection.

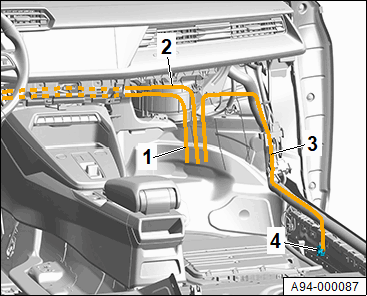

-- Install the prepared ground wire terminal 31 brown -3- to the ground connection -4-, then route along the wiring harness. Combine the ground wire with the positive cable terminal 30 red -1- as well as the LIN bus wire purple/black -2- behind the glove compartment. Secure all 20 cm with the cable tie.

Continuation for all vehicles

RHD vehicles

-- Lift off the carpet at the side sill, free up the ground connection -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ground connection nut. Refer to Wiring Diagrams, Component Locations: Ground Connection.

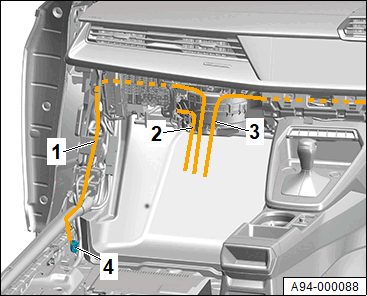

-- Screw the prepared ground wire terminal 31 brown -1- to the A-pillar ground connection -4-. Combine the ground wire with the positive cable terminal 30 red -2- and the LIN bus wire purple/black -3- behind the glove compartment. Secure all 20 cm with the cable tie.

Continuation for all vehicles

Wire routing in glove compartment

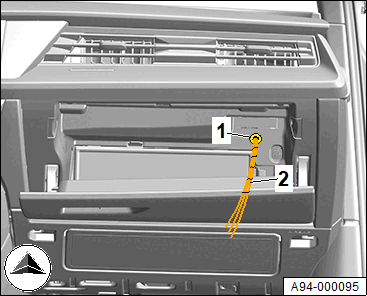

-- Drill an 11 mm diameter hole in the glove compartment and install a grommet -1- 4B0 971 908 A.

Courtesy of AUDI OF AMERICA, LLC

-- Combine the wires -2- in a mesh sleeve, add a heat-shrinkable tube and insert it through the grommet -1-, about 25 cm into the glove compartment.

-- Connect the alcohol interlock system inside the glove compartment, following the manufacturer instructions and secure it in the glove compartment.

-- Further installation is performed in reverse order of the removal.
