Overview - Rear Window, SPORTBACK

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

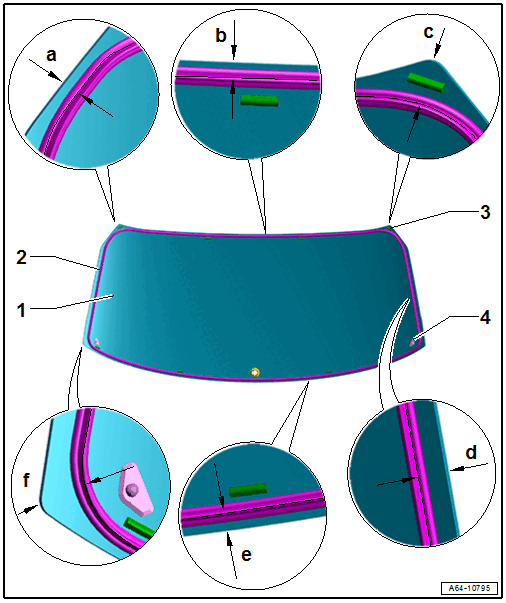

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

Rear Window
- Removing and installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
- Center at the sides
Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Note the different distances to the window edge
  - Dimension -a- = 7.6 mm
  - Dimension -b- = 7.5 mm
  - Dimension -c- = 9.0 mm
  - Dimension -d- = 8.0 mm
  - Dimension -e- = 9.5 mm
  - Dimension -f- = 16.0 mm
- Adhesive bead thickness. Refer to Adhesive application: .
Spacer
- Quantity: 7
- Place on the markings made on the ceramic coating
Locating Pins
- Quantity: 2
- Loosen the bonding before cutting out the window glass
