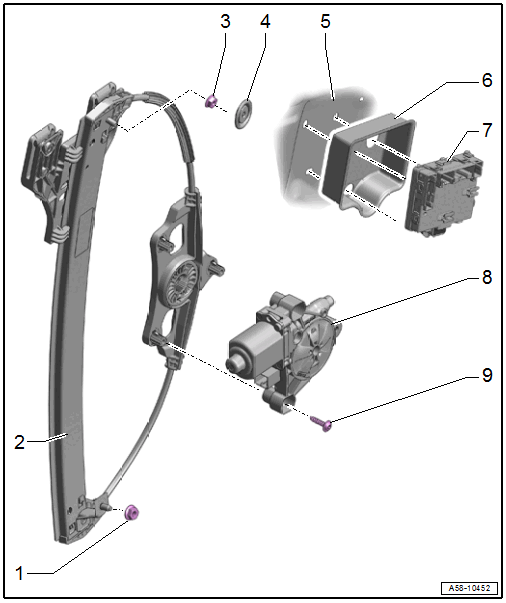

Overview - Window Regulator
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Replace after removing
- 7.5 Nm
- Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Nut
- Replace after removing
- 7.5 Nm
- Cap
- Door
- Not installed
- Rear Door Control Module
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
- Rear Power Window Motor
- Driver Side Rear Window Regulator Motor Control Module -J1016-, Passenger Side Rear Window Regulator Motor Control Module -J1017-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- Thread cutting
- Position and install by hand
- 3.5 Nm
