Overview - Window Guides And Window Shaft Strips

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

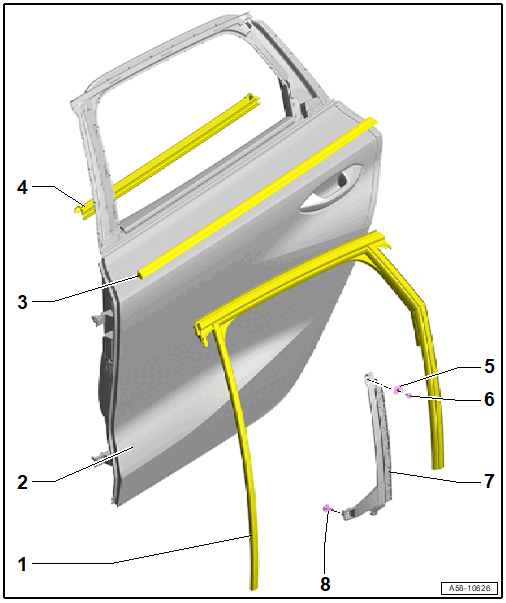

Fig 1: Exploded View Of Window Guides And Window Shaft Strips

Courtesy of AUDI OF AMERICA, LLC

Window Guide
- Removing and installing. Refer to WINDOW GUIDE, REMOVING AND INSTALLING .
Door
Outer Window Shaft Strip
- Removing and installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Inner Window Shaft Strip
- Removing and installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Clip Nut
Bolt
Guide Rail
- For the door window
- Removing and installing. Refer to DOOR WINDOW GUIDE RAIL, REMOVING AND INSTALLING .
Bolt
- 3.5 Nm
