Mounting Bracket, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hook Tool:T40207

Fig 1: Identifying Hook Tool T40207
Courtesy of AUDI OF AMERICA, LLC

Removing

-- Move the door window into the "closed" position.

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

-- Remove the door inner cover and let it hang with the wiring harness connected. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

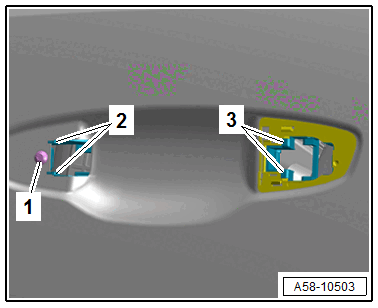

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- From the inside of the door push the mounting bracket toward the rear, until the frames -2 and 3- are free.

-- Remove the mounting bracket toward the inside.

CAUTION:

Risk of damaging the operating cable by deforming it.

- Never sharply bend or kink the operating cable.

-- Remove the mounting bracket toward the inside and remove it from the door at the same time pay attention to the operating cable.

-- Free up the operating cable -3- from the bracket -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Bring the release lever into the "open" position and hold.

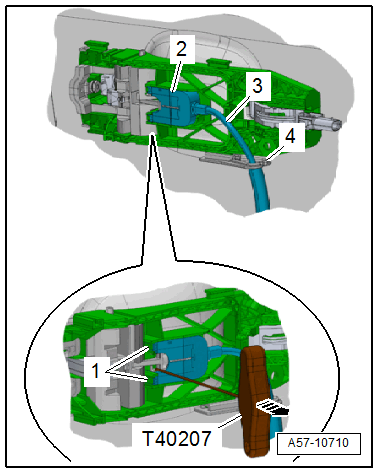

-- Remove the housing -2- with the operating cable from the mounting bracket using the Hook Tool:T40207 -arrow- ; while doing so, the retaining tabs -1- disengage.

-- Bring the operating lever into the "closed" position.

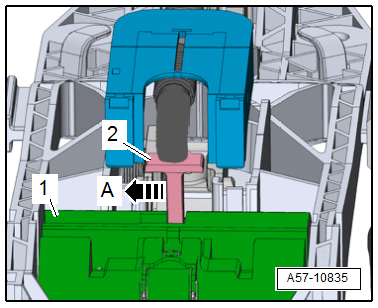

-- Disengage the operating cable -2- on the operating lever -1- in the -direction of the arrow A-.

Courtesy of AUDI OF AMERICA, LLC
