Housing, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

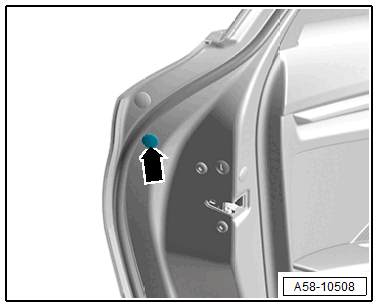

-- Remove the cap -arrow-.

GWWA58-10508Courtesy of AUDI OF AMERICA, LLC

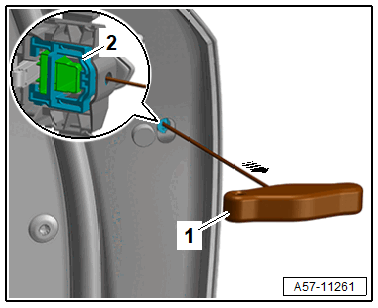

-- Pull the retaining bracket -2- with the Hook:T40207  -item. 1- outward -arrow-.

GWWA57-11261Courtesy of AUDI OF AMERICA, LLC

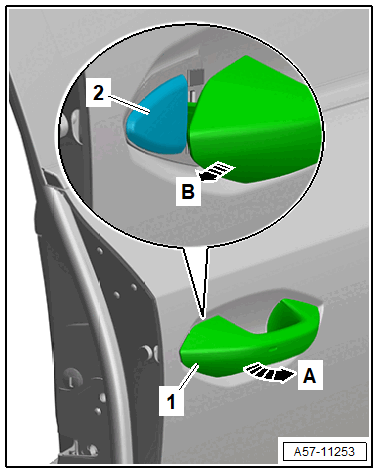

-- Pull the door handle -1- outward -arrow A- and at the same time push toward the rear -arrow B-, at the same time the housing -2- is pushed out of the mounting bracket.

GWWA57-11253Courtesy of AUDI OF AMERICA, LLC

-- Remove the housing.
