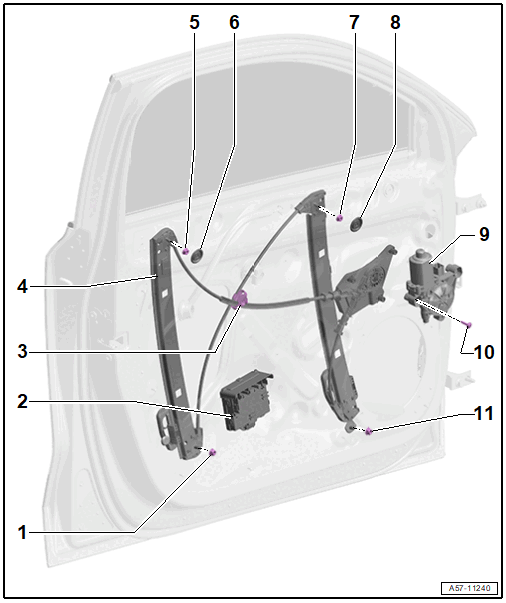

Overview - Window Regulator
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Replace after removing
- 7.5 Nm
- Door Control Module
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
- Clip
- Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Nut
- Replace after removing
- 7.5 Nm
- Cap
- Nut
- Replace after removing
- 7.5 Nm
- Cap
- Window Regulator Motor
- Driver Window Regulator Motor -V147-, Front Passenger Window Regulator Motor -V148-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- thread cutting
- Position and install by hand
- 3.5 Nm
- Nut
- Replace after removing
- 7.5 Nm
