Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Lower the headliner near the hinges. Refer to OVERVIEW - HEADLINER .

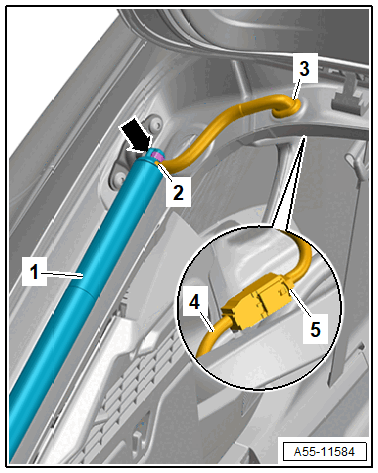

-- Disconnect the connector -5- and free up the wiring harness -4-.
-- Have second technician support the rear lid.
-- Lightly pry up the locking spring -2- using a small screwdriver and remove the rear lid drive unit -1- from the ball pin -arrow- on the body and the rear lid.
-- Remove the grommet -3- from the body and guide the wiring harness out through the opening.
