Power Rear Lid Opening Sensor -G750- /Power Rear Lid Opening Sensor 2 -G760-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .

A3/S3

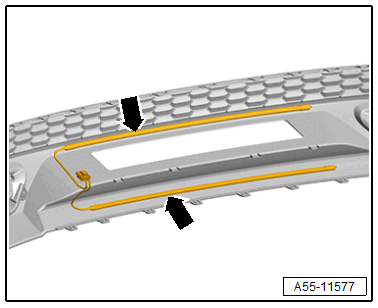

GWWA55-11577Courtesy of AUDI OF AMERICA, LLC

-- Warm the adhesive using the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A  .

-- Pull off the power rear lid opening sensor -arrows- and remove.

RS3:

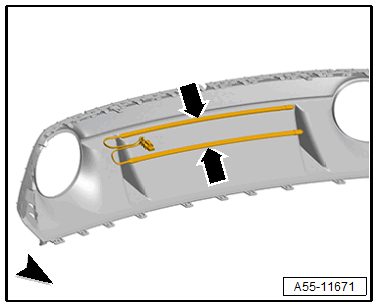

GWWA55-11671Courtesy of AUDI OF AMERICA, LLC

-- Warm the adhesive using the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A  .

-- Pull off the power rear lid opening sensor -arrows- and remove.
