Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING, A3/S3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Sedan: remove the bolts -1- as well as the nuts -3- and the underbody trim panel -2-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bolts -arrows- on the lower section of the bumper cover.
 Courtesy of AUDI OF AMERICA, LLC
|

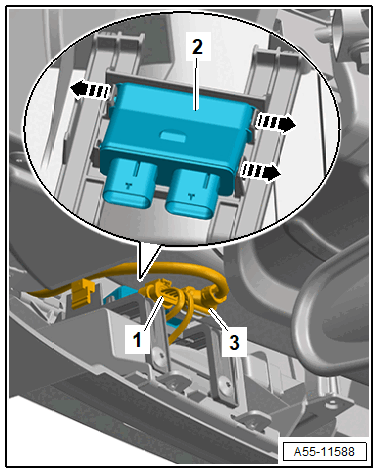

-- Disconnect the connectors -1 and 3-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Release the retainers -arrows-.
-- Remove the control module -2- from the mount.
