Rear Lid Lock, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid lower trim panel and rear lid latch trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
Equipment version with closing assist motor:
-- If equipped, open the cover -1- for fastening the release cable -arrow-.
-- Turn the operating cable 90° in the -direction of arrow A- at the lever -6- and remove it from the cable bracket on the rear lid latch -5-.
-- Using a screwdriver -1-, secure the operating lever -8- on the opposite side -arrow B-.
-- Disengage the release cable nipple -7- from the release lever -arrow C- and free up the release cable.
Continuation:
-- Disconnect the connector -3-.
-- Remove the nuts -2 and 4-.

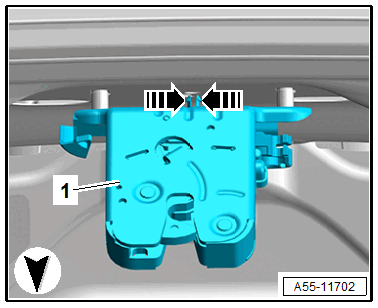

-- Remove the rear lid latch -1-. If equipped, to do so release the catches -arrows-.
