Drive Unit Mount, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the gas-filled strut only at the mounts and move to the side. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
-- Equipped on some models: remove the rear lid motor only at the mounts and move to the side. Refer to Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-, REMOVING AND INSTALLING .

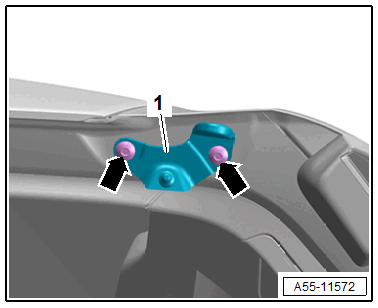

Lower:
-- Remove the bolts -arrows-.
-- Remove the mount -1-.

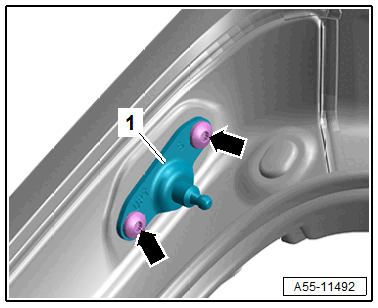

Upper:
-- Remove the bolts -arrows-.
-- Remove the mount -1-.
