Hood Release Cable, Removing And Installing, LHD: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the vehicle electrical system control module. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .

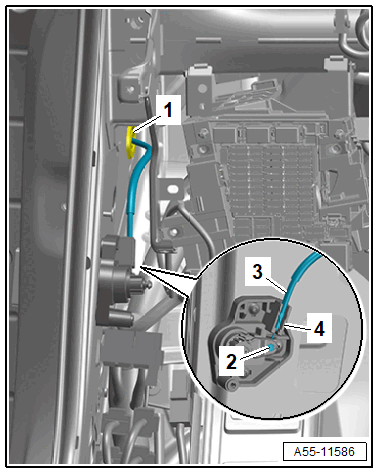

-- Loosen the release cable -3- from the cable bracket -4- and disengage the release cable nipple -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Push through the grommet -1- on the body.

-- TDI: remove the air duct on the lock carrier. Refer to OVERVIEW - AIR FILTER HOUSING .

-- TFSI: remove the air duct on the lock carrier. Refer to OVERVIEW - AIR FILTER HOUSING .

-- Loosen the washer fluid reservoir filler neck from the lock carrier. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

-- Release the retainers -arrows- and remove the housing cover -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the release cable -4- from the cable bracket -3- and disengage the release cable nipple -2-.

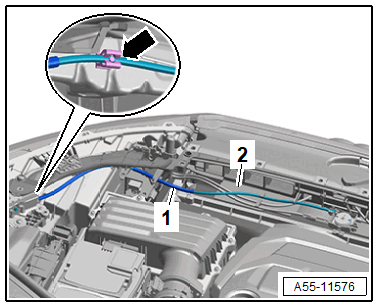

-- Free up the release cable -1- on the lock carrier -2- and on the clip -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the release cable out toward the rear using an assisting wire or cord.
