Hood Release Cable, Removing And Installing, LHD: Installing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Remove the left wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

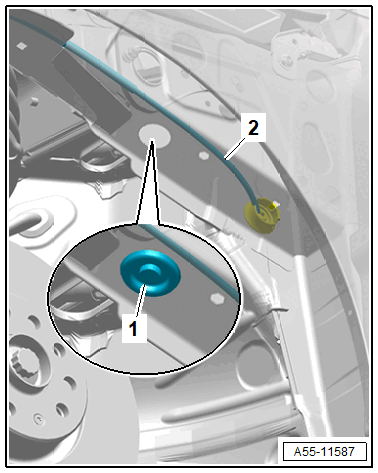

-- Remove the grommet -1-.
-- Guide the release cable -2- through the opening to the vehicle interior.
-- Engage the release cable nipple -4- in the roller of the coupling -1- and push the release cable -2- in the cable bracket.
-- Position the housing cover -3- so that the printed "line" -arrow- points toward the free coupling connection.
-- To release the latches evenly, adjust the release cable at the thumbwheel.
