Mounting Bracket With Hook Operating Lever Release Cable, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the hook release lever. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .
-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
-- Remove the hood latch and disengage the mounting bracket release cable. Refer to HOOD LATCH, REMOVING AND INSTALLING .

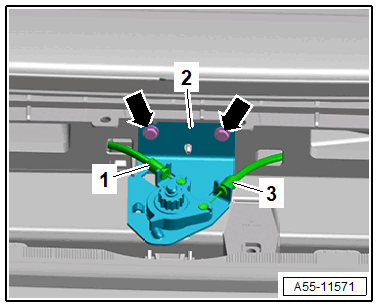

-- Remove the bolts -arrows-.
-- Remove the mounting bracket -2- and free up the release cables -1 and 3-.
