Hinge, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front lid. Refer to HOOD, REMOVING AND INSTALLING .
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
-- Free up the wiring harness.
-- Mark the hinge installation position for reinstallation.

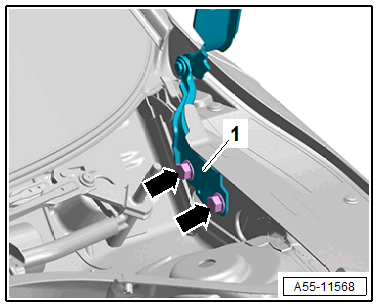

-- Remove the bolts -arrows-.
-- Remove the hinge -1-.
