Fuel Filler Door Unit Water Drain Hose, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Detach the rear section of the right wheel housing liner and push it aside. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

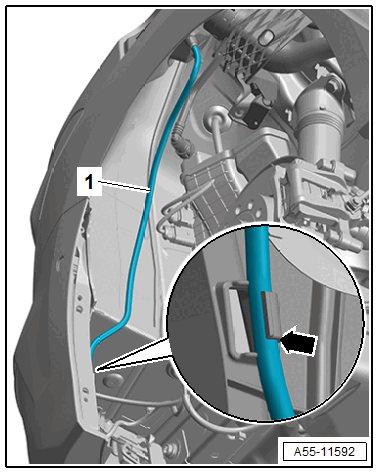

-- Remove the water drain hose -1- -arrow-.
-- Open the fuel filler door.
-- Remove the water drain hose upward from the fuel filler door unit.
