Fuel Filler Door Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Open the fuel filler door.

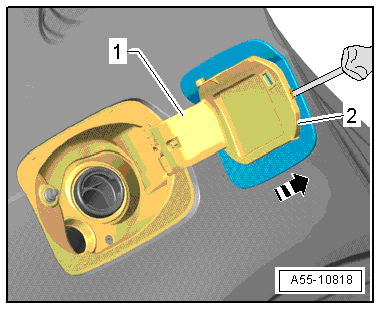

-- Push a small screwdriver between the trim -2- and fuel filler door unit -1- and release the catch.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the trim slightly from the fuel filler door unit in the -direction of arrow- and remove.
