Charging Socket 1 LED Module -L263-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the charge door unit. Refer to CHARGE DOOR UNIT, REMOVING AND INSTALLING .

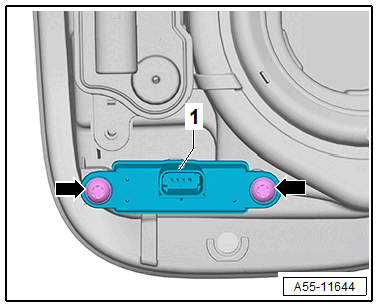

-- Remove the bolts -arrows-.
-- Remove the Charging Socket 1 LED Module -L263- -item 1-.
