End Panel Under Bumper Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

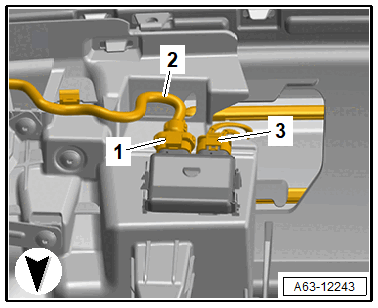

-- Right side: if equipped, disconnect the connectors -1 and 3- and free up the wiring harness -2-.

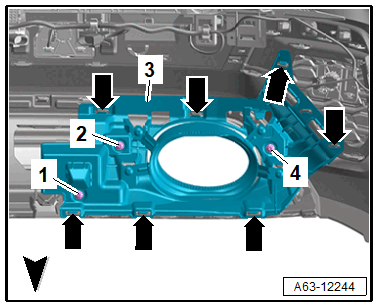

-- Remove the bolts -1, 2 and 4-.
-- Release the retainers -arrows- and remove the end panel -3- from the bumper cover.
