Rear Bumper Center Reflector, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of AUDI OF AMERICA, LLC
|

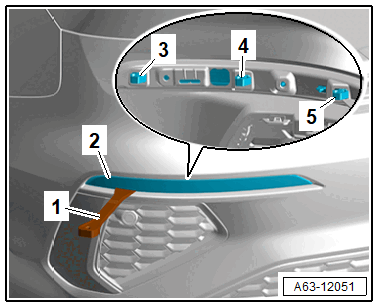

-- Reach behind the bumper cover and release the outer catches -5-.
-- At the same time hold the reflector -2- with the trim removal wedge -1- from the :VAS 895 015
from the outside.
-- Release the center catches -4-.
-- Release the inner catches -3-.
-- Remove the reflector.
