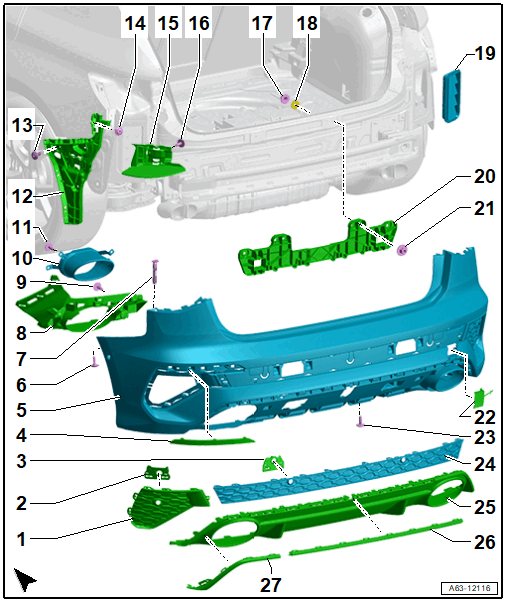

Overview - Bumper Cover, RS3
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Trim
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, RS3 .
- Mount
- For the parking aid sensor
- Clipped in the bumper cover trim
- Mount
- For the parking aid sensor
- Clipped in the bumper cover trim
- Rear Reflector
- Removing and installing. Refer to REAR BUMPER CENTER REFLECTOR, REMOVING AND INSTALLING .
- Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, RS3 .
- Fitting Bolt
- 2.1 Nm
- Locking Mechanism
- For attaching the rear bumper cover to the upper mount
- End Panel
- For lower bumper cover
- Removing and installing. Refer to END PANEL UNDER BUMPER COVER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 2 Nm
- Tail Pipe Trim
- Removing and installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 2 Nm
- Mount
- Side
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
- Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure.
- Fitting Bolt
- Tightening sequence. Refer to Figure.
- Mount
- For lane change assistance control module
- Removing and Installing. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bolt
- 2 Nm
- Nut
- Quantity: 4
- 5 Nm
- Sealing Washer
- Quantity: 4
- Forced Air Extraction
- The vehicle interior
- Checking. Refer to FORCED AIR EXTRACTION OF PASSENGER COMPARTMENT, CHECKING .
- Removing and installing. Refer to VEHICLE INTERIOR FORCED AIR EXTRACTION, REMOVING AND INSTALLING .
- Mount
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, LOWER, RS3 .
- Nut
- Quantity: 6
- 3 Nm
- Cover
- For the towing eye
- Bolt
- Quantity: 4
- 2 Nm
- Trim
- Center
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, CENTER, RS3 .
- Bumper Cover Lower Section
- Removing and installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, RS3 .
- Trim Molding
- Center
- For the bumper cover
- Removing and installing. Refer to REAR BUMPER TRIM MOLDING, REMOVING AND INSTALLING .
- Trim Molding
- Side
- For lower bumper cover trim
- Removing and installing. Refer to REAR BUMPER TRIM MOLDING, REMOVING AND INSTALLING .
